11. Old mando-cello/liauto contabile (515)  @   750 euros
Larger Photos can be sent on request

Old mando-cello

  This is an old, mandocello, in good condition after restoration. It is currently set up as a 10 string liauto contabile. It has had previous work, as the neck and head are obviously not original. There is a label , but whether this is the original builder or the luthier that did the conversion is not clear.

Eduard Vondracek

Hudebni Nastroje a Struny

Praha, Stepanska, 4

(Translation: Musical Instruments and Strings, Prague in the Czech Republic.)

   This instrument is now fully playable after restoration. The top is sound with no repairs. It has a superb 25-piece rosewood bowl back with a couple of seam repairs. It has the new ebony fingerboard and modern frets. The tuners, tail and bridge are original. It has been partly refinished with shellac and Tru-oil. It has been restrung with silver wound strings and is now playing well with a deep booming sound with excellent sustain and volume. It has an easy playing action.

   Other than cleaning, I have repaired as follows… 1) repaired several open seams in the bowl and reinforced within; 2) repaired the split scratchplate; 3) replaced missing MOP around the sound hole; 4) restained the heavily scuffed neck; 5) made and fitted a new fingerboard; 6) refitted and repaired the original bridge; 7) revarished throughout with shellac and tru-oil; and 8) strung and set up.



Mandolin Specifications (In Millimetres)



Overall Length of Mandolin

970mm

Width of mandolin at widest point

345mm

Approx. Depth of mandolin

220mm at bridge.

Finish

Refinished or French polish touched up throughout.

Belly wood

Good quality, book-matched spruce top, a little scuffed and battered. The lower bout dips a little below the strings.

Scratch plate

T/S one long repair.

Sound hole

Ovaloid 105 x 65mm.

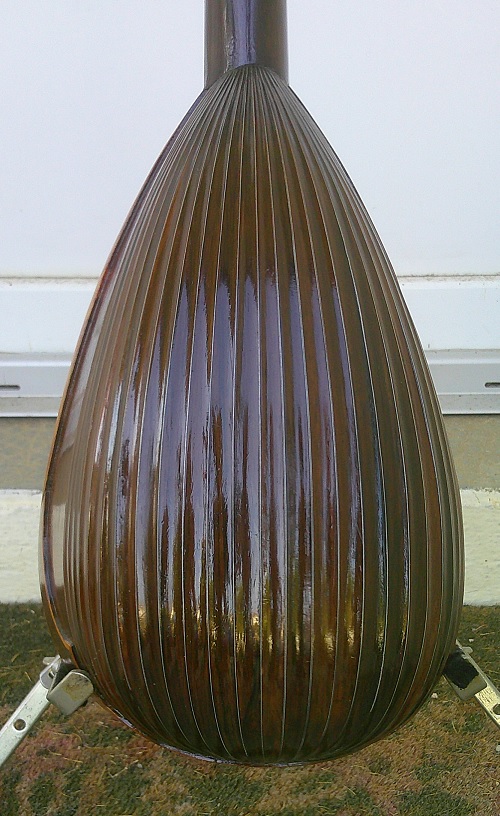

Back and sides

Rosewood, in good condition, but with some seam repairs.

Neck and Head

Single-piece re stained maple. Good condition.

Fingerboard

New ebony f/b with 18 frets. Original nut refitted. Position markers at 5, 7, 10, 12 and 17.

Machine heads

Original tuners and buttons. All working though some very stiff.

Tailpiece

Steel tail, with 5 brass string posts. Tarnished.

Bridge/tensioner

Original ebony bridge repaired and refitted.

Scale Length Bridge to nut

Scale of 595mm

G string height at bridge

11mm

E string height at bridge

11mm

12th fret to bottom of G string (Action)

2.25mm

12th fret to bottom of E string (Action)

2mm

Width of fretboard at nut

42mm

Width of fretboard at widest point

60mm
