9. Old Italian bowlback mandolin (879)  @ 175 euros  new
Larger photos are available on request.

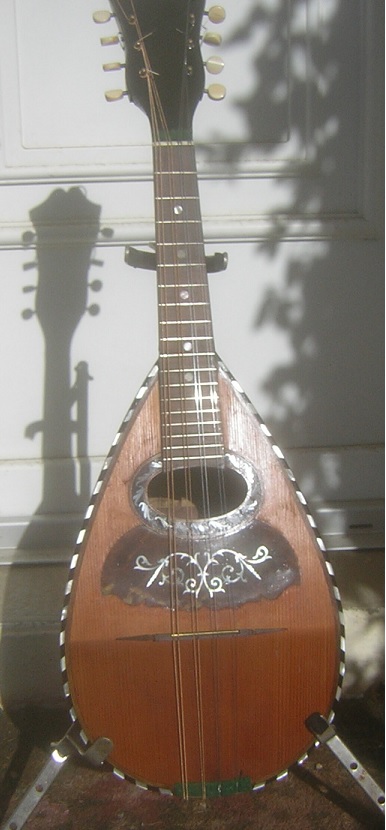

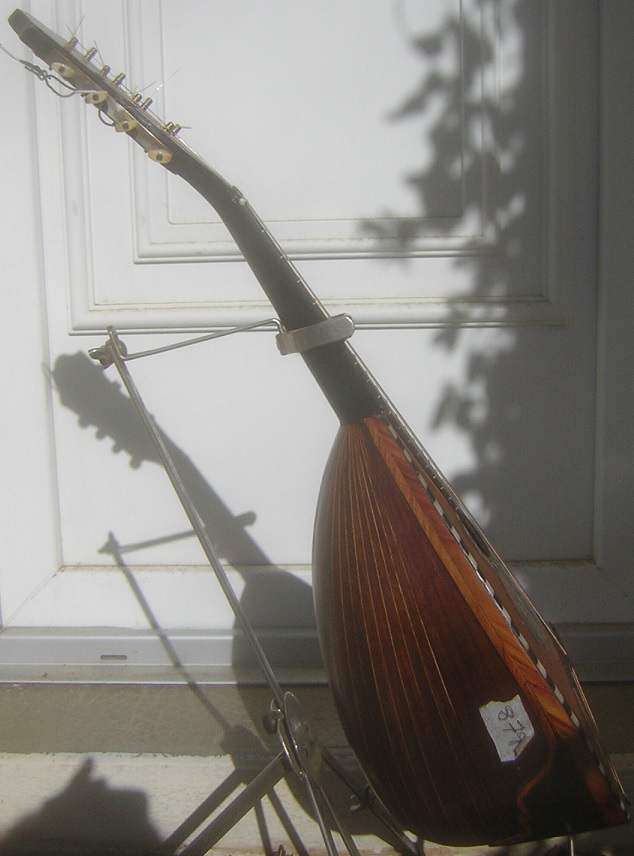

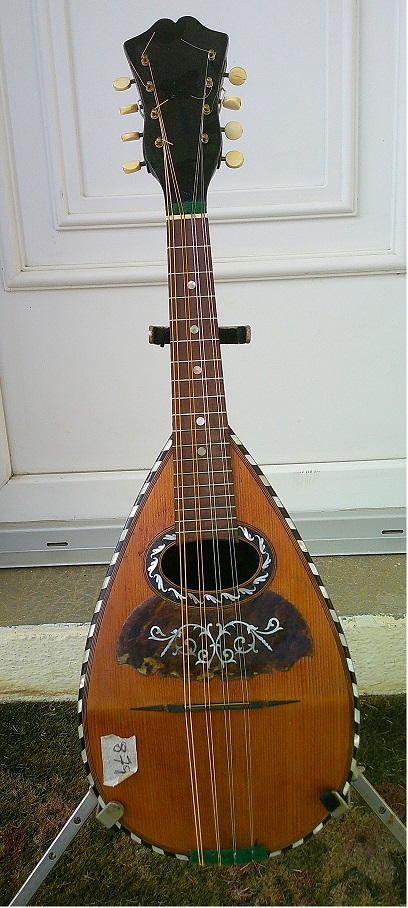

Old named Italian bowl-back

This is an old, Italian bowl-back mandolin from the late 19th or early 20th century. It is in fair condition after restoration, though there is evidence of a previous repair. There is a label which says …

Luigi Euvingino

Prima Fabbrica di Mandolini

Via Dante

Milano

This instrument is now fully playable after restoration. The top is sound with scuffs and scratches of use. It has an excellent 29-piece rosewood bowl back with seam repairs. It has the original rosewood fingerboard with German silver bar-frets. The tuners, bridge and tail look original. It has been refinished throughout with shellac and a modern varnish. It has been restrung with ultra-light GHS bronze wound classical strings, and is now playing well with a bright, melodious sound with good sustain and volume. It has a fairly easy playing action.

Other than cleaning, I have repaired as follows… 1) cleaned the top; 2) replaced missing edging pieces; 3) levelled the rosewood fretboard; 4) levelled and dressed the original German silver bar-frets; 5) repaired a hole in the bowl and reglued a couple of open seams; 6) repaired trim around the clasp and sides; 7) refinished throughout with shellac and tru-oil, to replace old finish; 8) refitted the original nut and bridge; 9) fitted new anti-vibration felt, restrung and set up.

Mandolin Specifications (In Millimetres)

Overall Length of Mandolin

630mm

Width of mandolin at widest point

195mm

Approx. Depth of mandolin

145mm at bridge.

Finish

Refinished throughout with shellac and tru-oil..

Belly wood

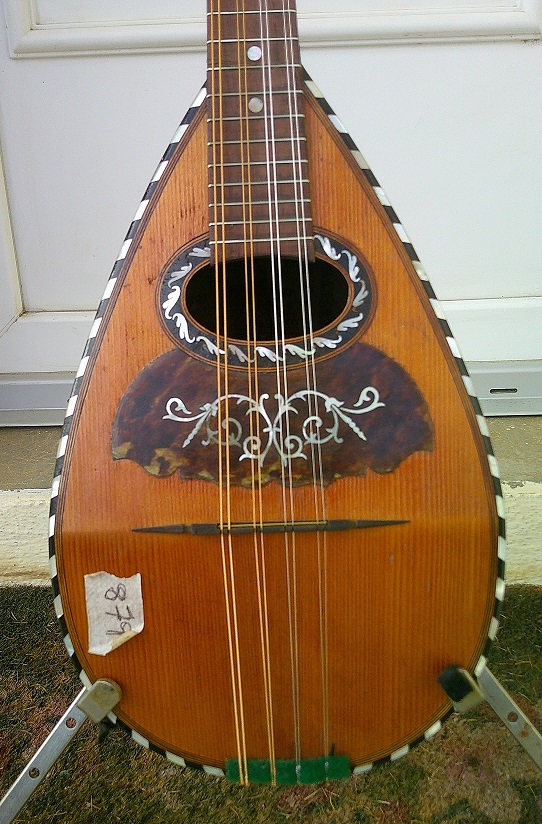

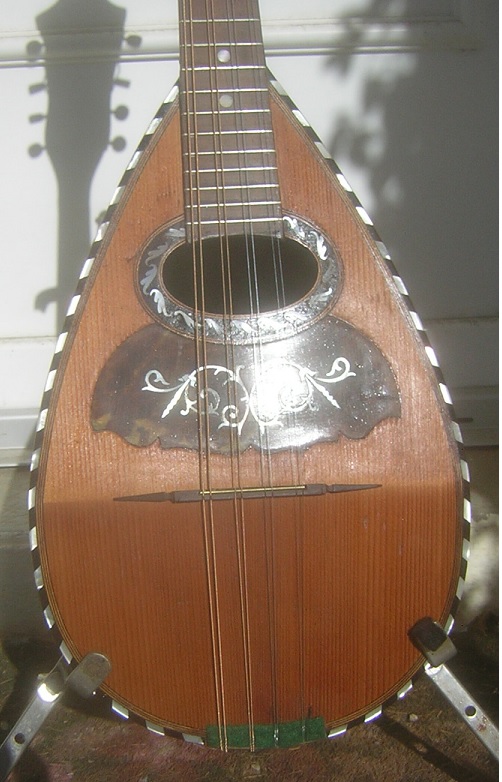

Fair quality, book-matched, spruce top, close-grained at the centre. No repairs but some scuffing.

Scratch plate

MOP inlaid into t/s I think. Good condition.

Sound hole

Oval hole, approx. 65x 35mm.

Back and sides

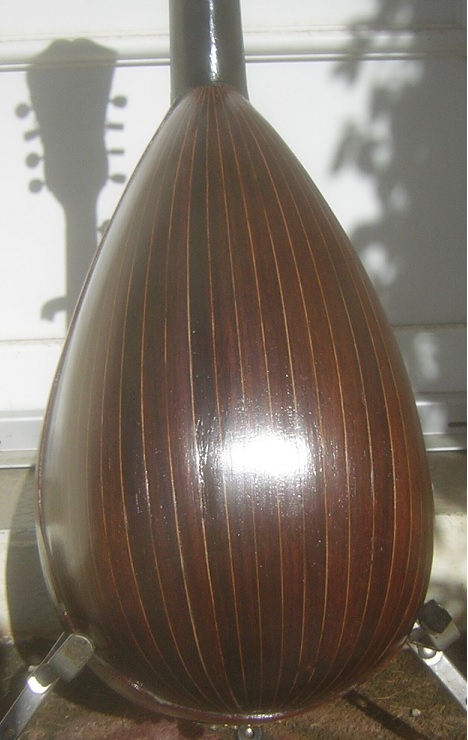

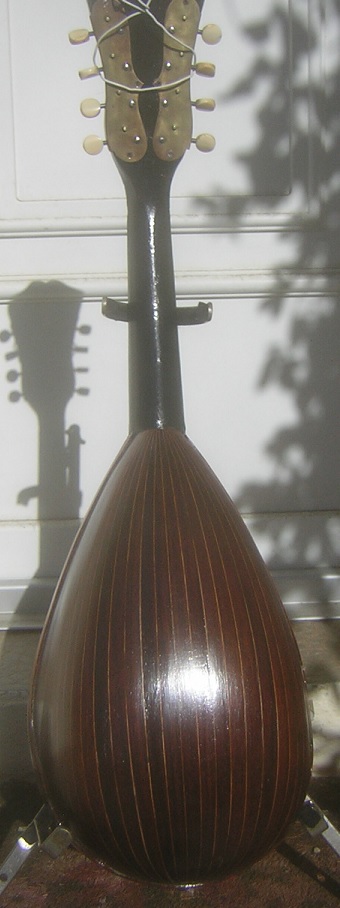

29-piece, rosewood bowl-back, clasp, and tulipwood sides and trim.

Neck and Head

2-piece, stained/painted neck and head in fair condition.

Fingerboard

Original in rosewood with 18 narrow German silver bar-frets showing no wear. Existing bone nut.

Machine heads

Original steel and brass closed tuners with original buttons. All working though one or two stiff.

Tailpiece

Original in brass with 4 brass string posts.

Bridge/tensioner

Original ebony and brass shelf bridge refitted.

Scale Length Bridge to nut

Scale of 336mm

G string height at bridge

4mm

E string height at bridge

35mm

12th fret to bottom of G string (Action)

2mm

12th fret to bottom of E string (Action)

2mm

Width of fretboard at nut

29mm

Width of fretboard at widest point

42mm

Sleeve guard

Sleeve guards are available if required
