To restore the old mandolins I work on, because of the type of tail-piece they have, I sometimes need to fit a sleeve guard. Like repro bridges, I have failed to find a supplier of these, (even the tortoise-shell celluloid is expensive and difficult to find), so I have been forced to make them myself. They are all made by hand in my workshop using chisels, craft knives and files.

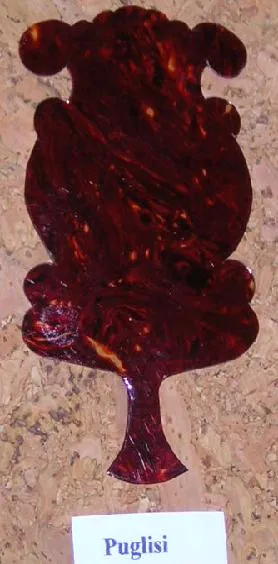

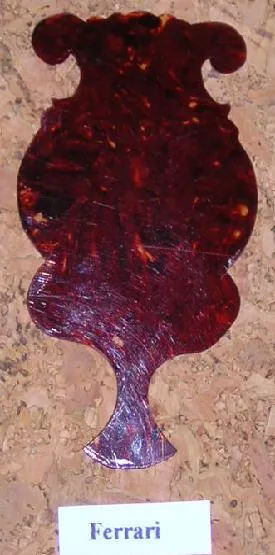

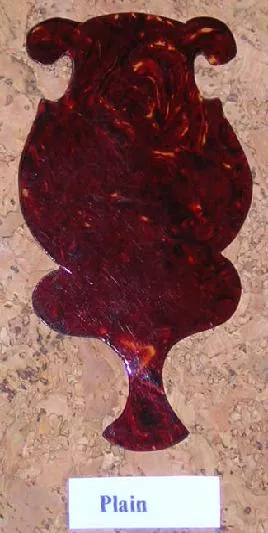

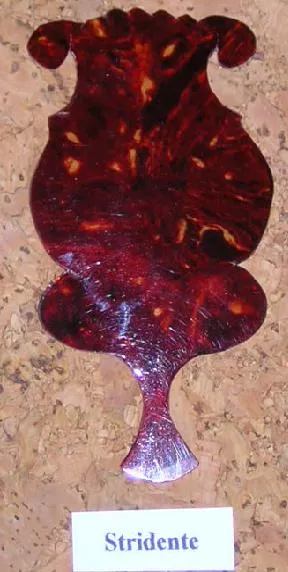

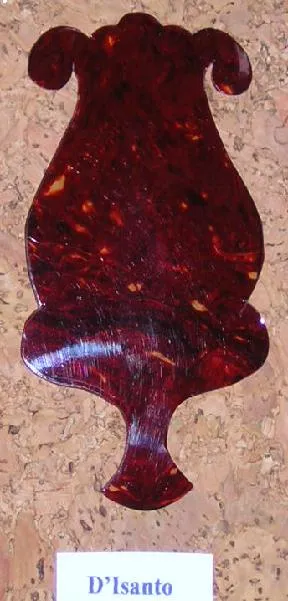

I have taken existing patterns from old sleeve guards as my models, and for convenience named them after the instrument they were seen on. Below are those I make to date.

If you need one, please drop me a line via the Contacts Page
Future sleeve guards will not necessarily match in colour, as dictated by the celluloid I am able to acquire.

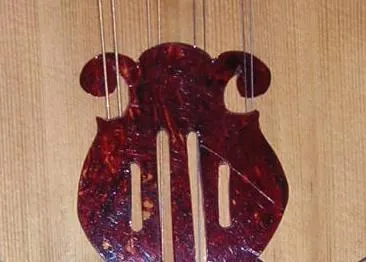

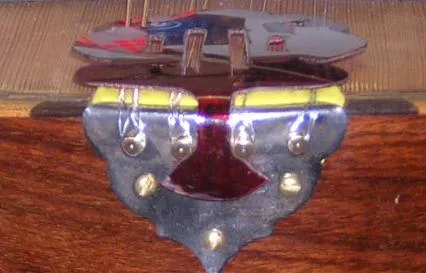

	Fitting: These sleeve guards are designed to be used primarily with the small, Italian-style tail-pieces with 4 brass string posts. The thin *tail fits between the centre 2 posts, (left photo below) over the strings, and is held in place by the 2 small 'ears' at the top,* (right photo below) *which are tucked under the outer 2 strings*. If the tail needs bending to shape, this can be done by hand, or by softening the tail in hot water first. I have seen similar on German mandolins with 4 string hooks and no 'kidney' tail-piece, though these have usually been of aluminium.		Picture to follow
As above

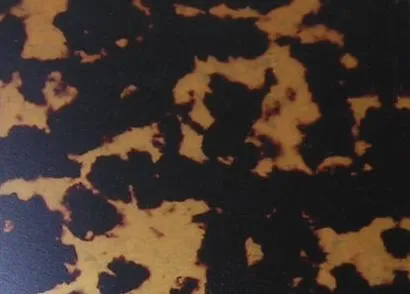

Orange T/S	between centre posts	ears under outer strings	Yellow T/S
